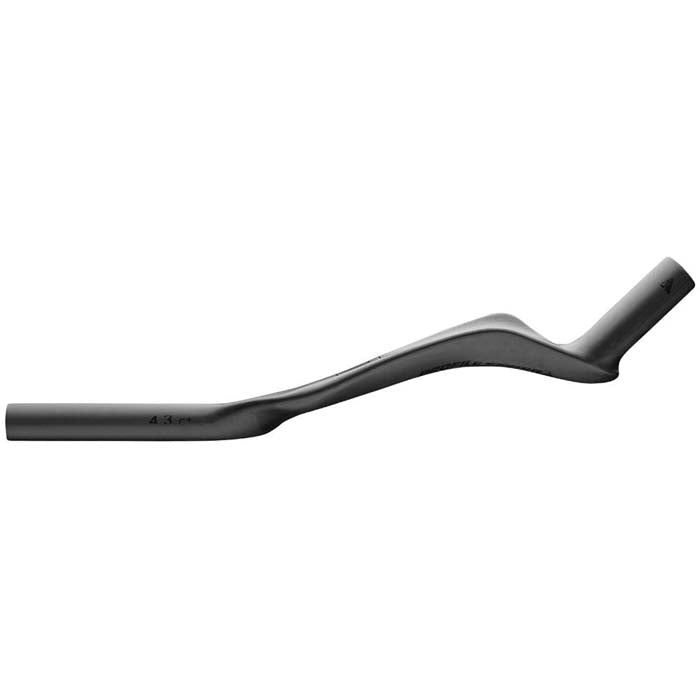

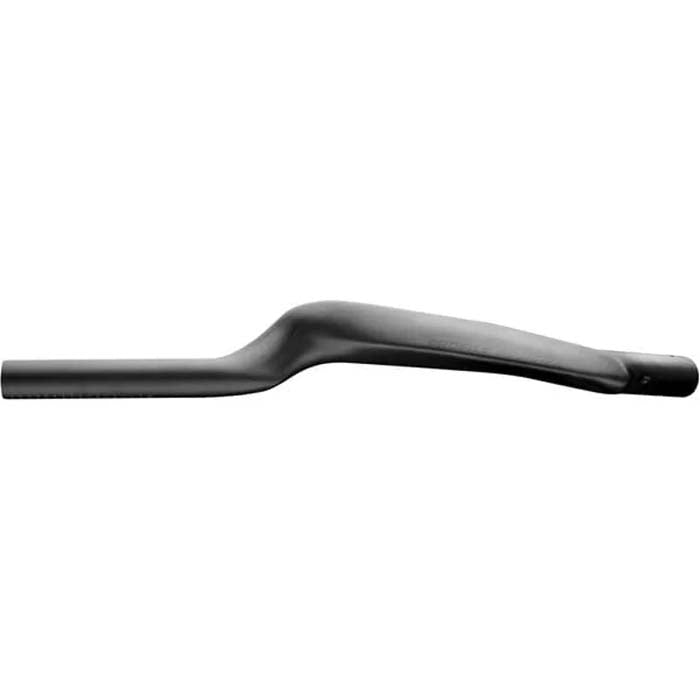

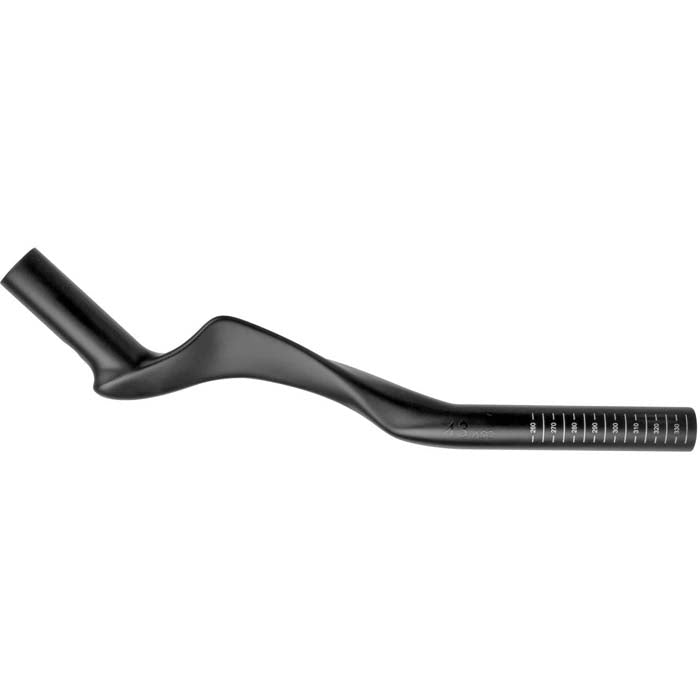

Aerobar Extension 43ASC

Overview

When designing these extensions we wanted to utilize carbon fibers' natural ability to be shaped into an aerodynamic form while still providing a good amount of strength and rigidity, hence ASC stands for Aero Shaped Carbon.

Looking at the grip section, we have a 87mm rise from the base of the extension to the grip with the grip angle being set at 43 degrees.

The reason we went with a 43 degrees grip angle was to give a neutral wrist position which helps the rider to be in a more relaxed position and the key to speed is relaxation.

The fit by the wrist area is designed to smooth airflow over the arm and to increase contact area which will provide some extra comfort and to give you more control over your bike. The shape was optimised using CFD to minimise drag without sacrificing strength.

Who is it for?

The 43ASC is intended to optimize the aerodynamics of your existing bars but pairs exceptionally well with either the Race+ or Ergo+ armrest. Giving you the ideal supportive position which again will help you be relaxed while riding and as we mentioned… the key to speed is relaxation.

The extensions will fit in any aerobar that is designed for 22.2mm.  So can be used by any rider wishing to improve the comfort of their aerobar grips.

Tech Specs

• Extension Length: 340mm or 400mm
• Min Length: 340mm: 230mm or 400mm: 290mm (from the front of clamp)
• Extension Angle: 43 Degrees
• Extension Rise: 340 - 97mm or 400 - 107mm (bottom to top)
• Extension Offset: 16mm total
• Outer Diameter: 22.2mm
• Inner Diameter: 18.8mm
• Shifter Compatibility: Electronic or Mechanical

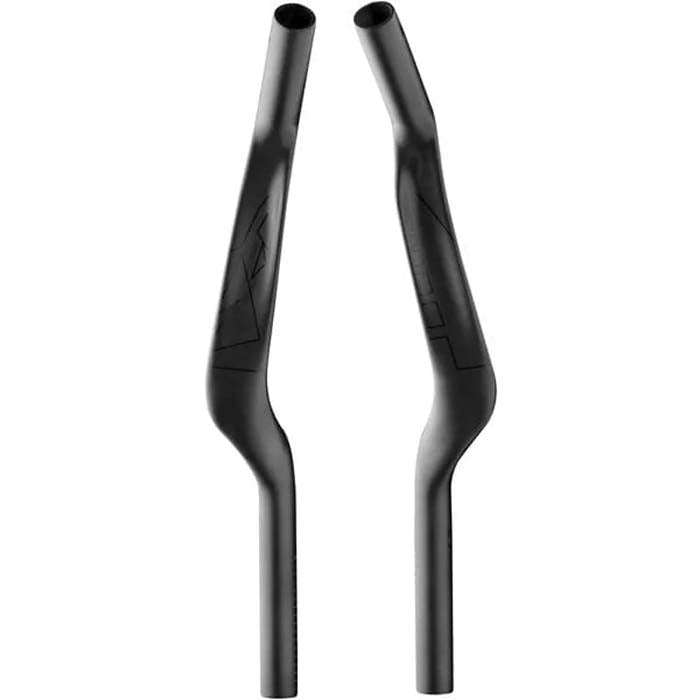

• Includes: Sold as a Pair (1 Right and 1 Left Extension)
• Construction: Carbon
• Colors: Matte Black
• Weight: 340mm = 245g or 400mm = 255g /pair
