Overview

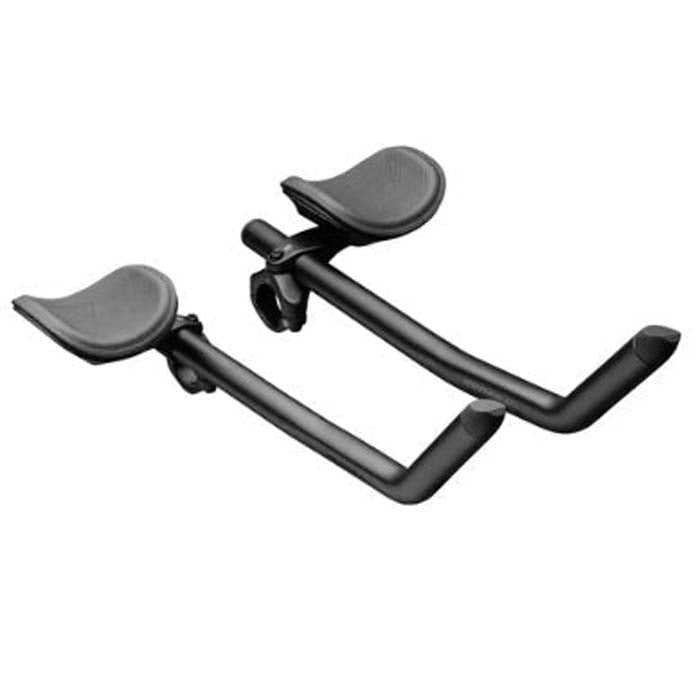

The Flip bracket offers our new generation fit range paired to classic Profile Design spring loaded arms allowing the armrests to sit up, out of the way when not in use.
Pairing this bracket with the ergo armrest offers industry leading fit options and greater comfort.
With the 52a extensions this aerobar encourages a neutral wrist angle.
Performance
The Flip/Ergo platform is designed to give riders the freedom to find an optimal low stack position with the ability to hold the bar tops when climbing.
There are 80 distinct position options achievable just by moving the armrest. As a clip on bar it also possible to adjust the extension width, length and tilt easily.
Fit Data
-
Armrest Offset: -85mm to -17.55mm in 7.5mm steps
-
Armrest Width: 112mm to 280mm in 18.5mm steps (With Extensions at 100mm)
-
Armrest Stack: 40mm
Extensions

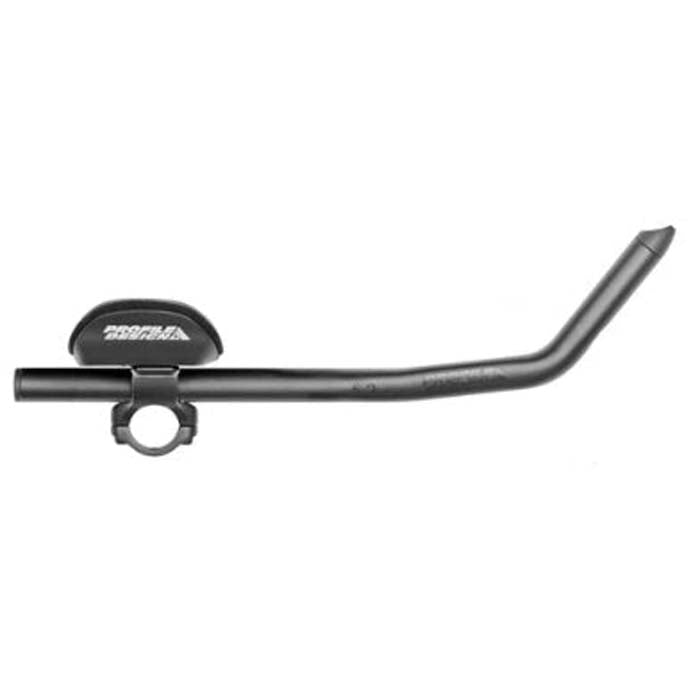

- The 52a extensions have a 52° for the grip. The rider can choose whether to hold high for the shrugged position or low for a more open, head up position.
- The 52a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
- Of course we didn't forget the importance of aerodynamics - adding a Kamm shaping to the rise section.
- Lastly we added ergonomic shaped end caps making the hand grip more comfortable.
Tech Specs
-
Bracket: Flip
-
Extensions: 52a (340mm length)
-
Armrest: Ergo / 10mm Pads
-
Armrest Width: 112mm to 280mm in 18.5mm steps (with Extensions at 100mm)
-
Armrest Offset: -85mm to -17.5mm in 7.5mm steps
-
Armrest Stack: 40mm
- Extension Length: 340mm
-
Clamp Diameter: 31.8mm (26.0 w/Shims)
-
Riser Kit Compatibility: Not Compatible
-
Color: Matte Black
-
Weight: 587g
Tech Guide
Torque settings (all bolts are M6)
-
Bar Clamp: 6Nm
-
Extension Clamp: 5Nm
-
Armrest Bolts: 4.7Nm
Weight
-
Bracket: 242g
-
Armrest: 145g
-
Extensions: 200g
-
Total: 587g
