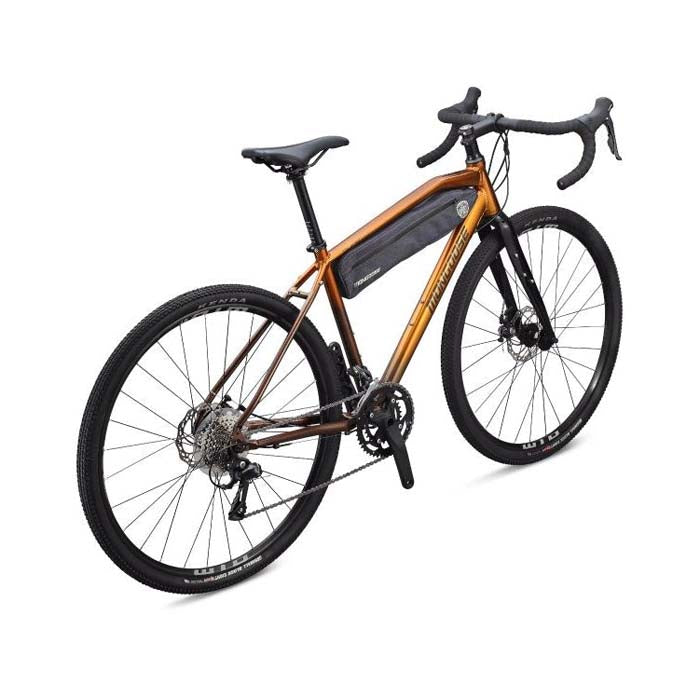

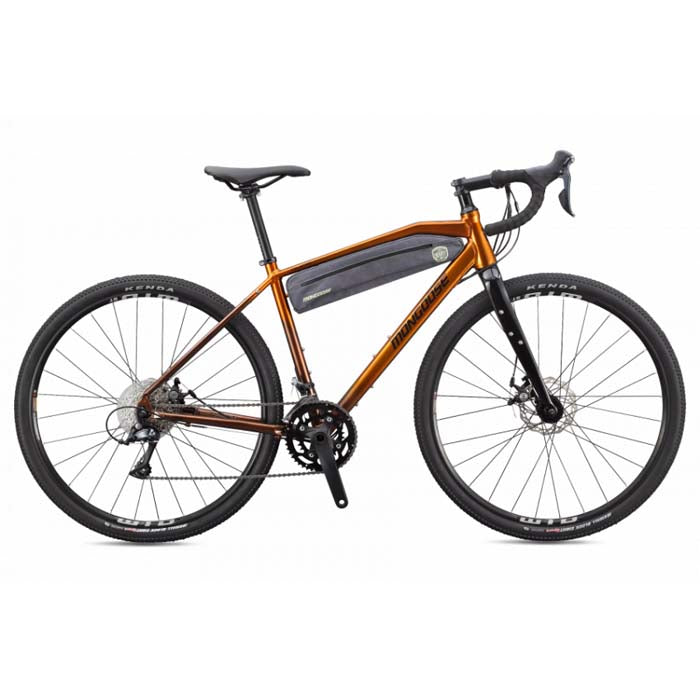

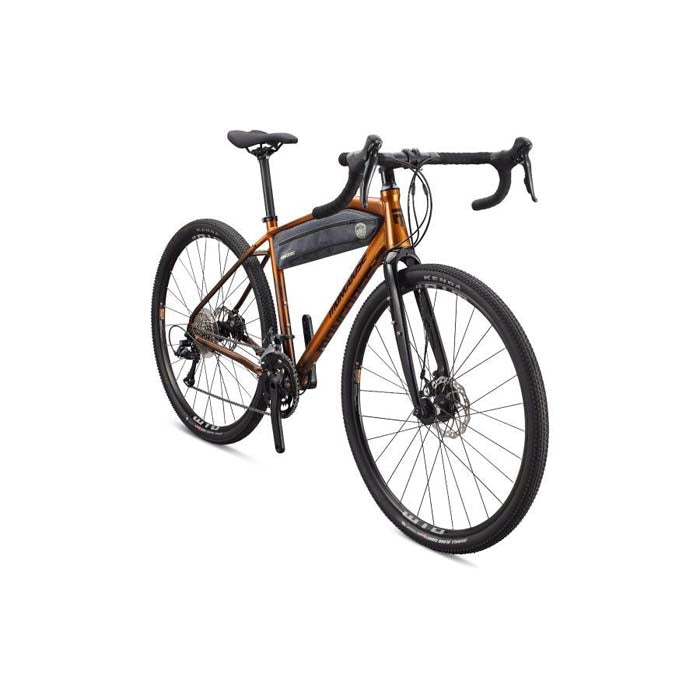

BIKE GUIDE SPORT 2022

FRAME  Tectonic T2, aluminum, 700c adventure geometry, internal cable routing, 9 mm x 142 mm dropout, replaceable hanger, tapered headtube

FORK  Mongoose, 700c, aluminum steerer, 12 mm x 100 mm, QR

CRANK  Samox TAM31-232, aluminum, 46/30T

CHAIN  KMC Z99

BOTTOM BRACKET  Samox, external, 3-piece, threaded 68 mm shell

SHIFTERS Shimano Sora ST-R3000, 2 x 9

REAR COG Sunrace, 9-speed, 11-34T

FRONT DERAILLEUR  Shimano Sora FD-R3000, band clamp

REAR DERAILLEUR  Shimano Sora RD-R3000

RIMS  WTB ST-19, aluminum double wall, 19 mm ID, 32H, tubeless compatible,

FRONT HUB  Xposure, aluminum, ball bearing, 9 mm x 100 mm, 32H, 6-bolt

REAR HUB  Xposure, aluminum, ball bearing, 9 mm x 135 mm, 32H, 6-bolt

SPOKES  14G, stainless steel

TIRES  Kenda Small Block, 700 x 47c, wire bead

PEDALS  Mongoose, nylon

BRAKES  Promax DSK-330 flat mount, mechanical, aluminum, 160 mm rotor

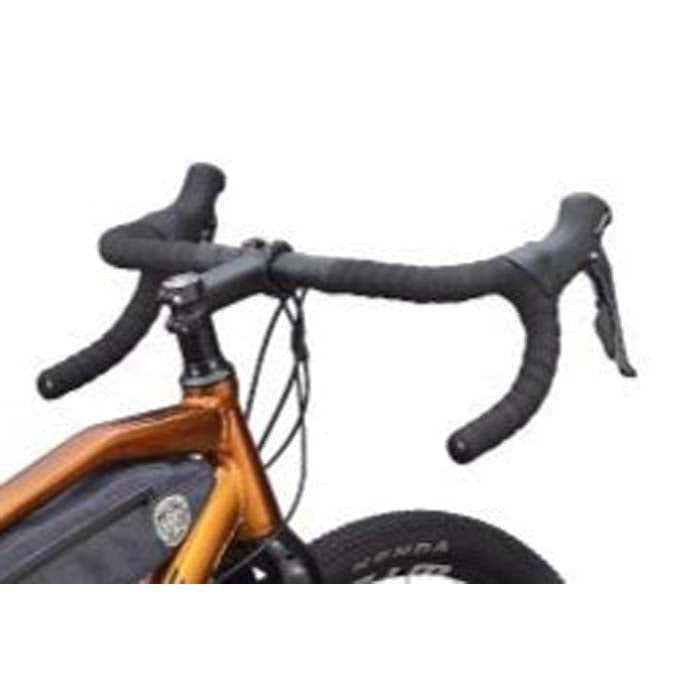

HANDLEBAR  Xposure, aluminum, 450 mm - 510 mm width, 31.8 mm clamp

STEM  Xposure diecast, threadless, 90 mm/100 mm, 7°, 31.8 mm clamp

HEADSET  Threadless, ZS44/ZS56, retainer bearing

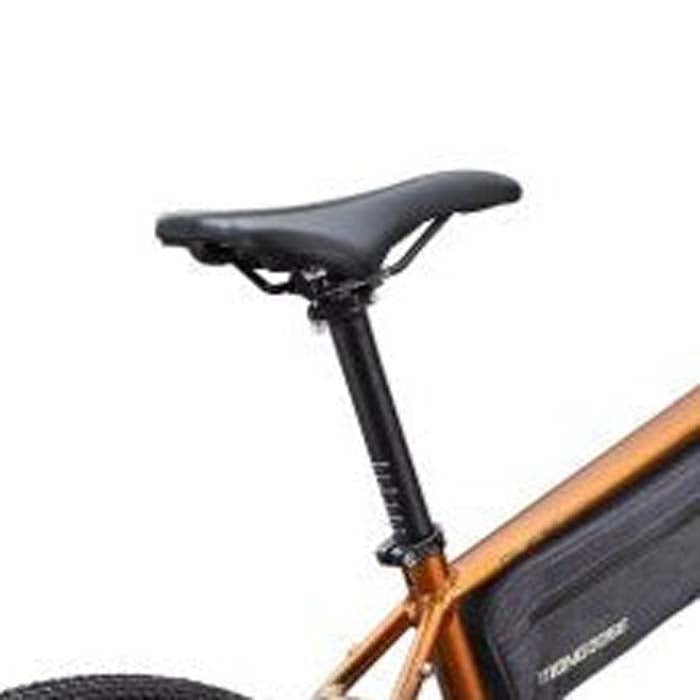

SEAT POST  Xposure, aluminum, 350 mm, zero offset, 31.6 mm

SADDLE  Mongoose adventure, steel rails

GRIPS  Xposure, non-slip tape

SIZES  SM

EXTRAS  Frame bag
