FRAMESET STINGER (Red) Medium

Product Information

The Stinger is the fullest manifestation of Ceepo’s design forward legacy. It is a premiere racing platform, meticulously engineered for the explicit goal of racing fast.

The Stinger combines aerodynamic experimentation and innovation with the road bike tradition, delivering a performance oriented aero road racing platform like few others. It is an unabashedly aero road performance superbike that delivers surgical precision at speed.  This is not your all day bike, unless you plan to ride your bike all day fast. Very. Fast.



The Stinger provides advanced aerodynamics resulting in a streamlined, well-mannered experience that merges classic road bike ride quality with a fully integrated aerodynamic design.



“On the rivet” Ceepo’s approach to designing the Stinger’s geometry inherits characteristics from years of designing triathlon bikes. This experience enables Ceepo to combine aggressive “on the rivet” position-ing while delivering balanced and reliable handling.  To realize this, Ceepo combines dramatic aerodynamic features, such as truncated airfoil tube shapes, with road neutral geometry to offer a stable, compliant, stiff and well mannered, yet incredibly aggressive racing platform capable of bringing all these features into graceful harmony when at speed.

In order to create the Stinger’s aggressive position that handles well at speed, Ceepo shifted the trail window from 40-60 mm to 50-70mm and lowered the bottom bracket 5mm. The devil is in the details, and these minute details make for significant performance gains.



The overall effect is a bike that excels at speed, disappears underneath the rider, requires very little input to manage and frees up the rider to place exertion where it counts: speed and power.



All of these refinements translate to performance gains in a sleek and aerodynamically refined package. When you are on the rivet, the Stinger delivers by amplifying every watt into efficient forward motion. Simply put, the new Stinger is faster on the flats, lighter on the climbs and sharper on descents.



Everything you expect from a modern carbon aero road bike, only faster.

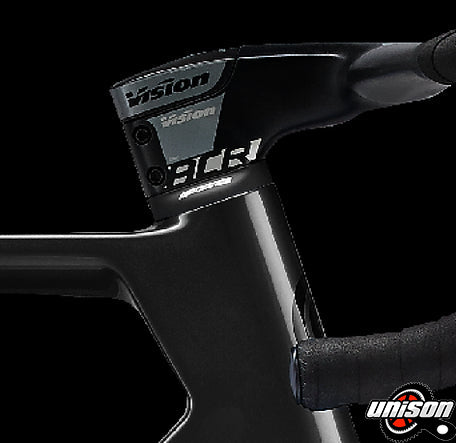

Frame and fork integration

Wide tire clearance and cable management are made easier with a straight 1.5” headtube. The hidden one-piece fork and steerer tube are your secret weapon.



Bottle recess

seat tube design

Mounting bolts are positioned to put a second bottle centered low in just the right place for longer rides.



Aero Tubes

Elegant aero tube shapes take advantage of truncated airfoils which allow the Ceepo to seamlessly combine greater aerodynamics to reduce drag and headwind turbulence while retaining competitive stiffness and weight values.



Integration

Hidden Cable Pathways for total front end aero integration. With internal cable routing and cable free pathway solutions via partnerships with FSA and Token, Ceepo creates clean and aero front ends that smooth air flow, reduce drag and headwind turbulence. For some models, the clean lines create a snag free frame interface for attaching frame bags for long haul adventures.



Carbon

Optimal Strength and Modulus Carbon (OSMC) working with cutting edge Toray carbon and a solid inner molding process to create complex signature aero carbon tube shapes. This results in a carbon frame with smoothed out internal surfaces, eliminating frame imperfections and weak spots for improved performance, strength, stiffness and compliance. Not to mention, reliability.



One-Piece Fork

Integrates with the frame to create a single contiguous profile improving airflow. Flattened wide legs reduce form factors, narrow towards the axle for stability; reducing drag and turbulence, especially in headwind conditions; provide precision handling with a balanced weight to stiffness ratio. The crown tail further smooths airflow over the bike.







CEEPO’s aerodynamic heritage continues to influence our lightest and stiffest aero road frame to date.

Sizes:

43(XS)/ 46(S)/ 49(M)/ 52(L)

Compatible Groupset:

Mechanical and Electronic Shifting, 2x and 1x.

SHIMANO

SRAM

FSA

Classified PowerShift Hub

Crankset Max/Min:

Min: 30T

Max: 53T

Bottom bracket:

BB386EVO

Headset:

FSA NO.55R 1.5” ACR headset

Stem Size:

FSA SMR stem.
XS-70mm, S-80mm, M-90mm, L100mm, XL-110mm



Brake & Rotor:

Flat Mount
Rotor160mm Max.

O.L.D. & Axle:

Front: 100mm x Ø12,
Rear: 142mm x Ø12

Seat post:

CEEPO road post

Frameset info:

Frame: 830g (M size, naked)

Fork:404g (uncut steerer 300mm, naked)

Carbon info:

Japan Toray ®

Tire clearance:

Max: 28c

Color:

Black and Blue

UCI:

YES

Specifications

Price
₱114,000
Taxes and shipping calculated at checkout
Out of stock
