Product:

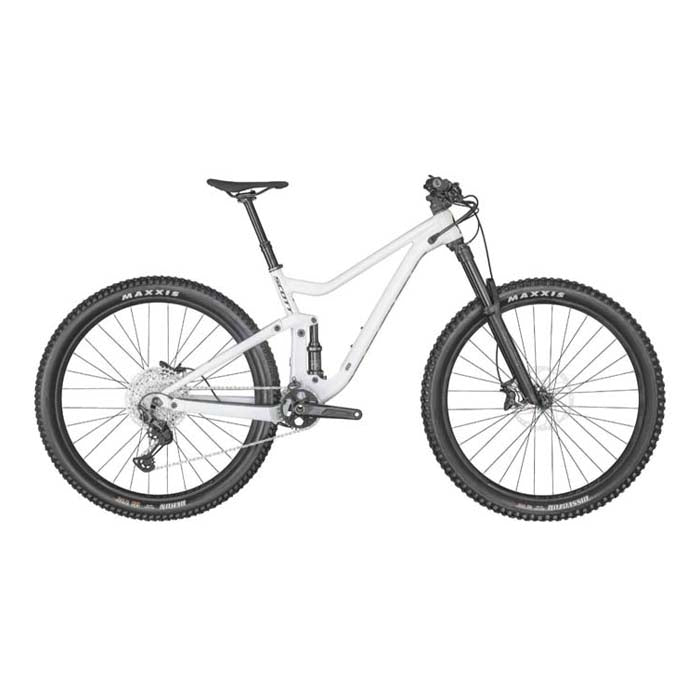

Scott Genius 940 Bike
Rider:
Unisex
Colors:
WHITESizes:
MEDIUM
Frame Material Details:
6011 custom-butted alloy; molded chainstay protection
Rear Shock:
FOX FLOAT DPS Performance, EVOL, 3-mode adjust via Scott TwinLoc TSP (Lockout, Trail, Descend), rebound adjust, trunnion mount, 185mm x 55mm

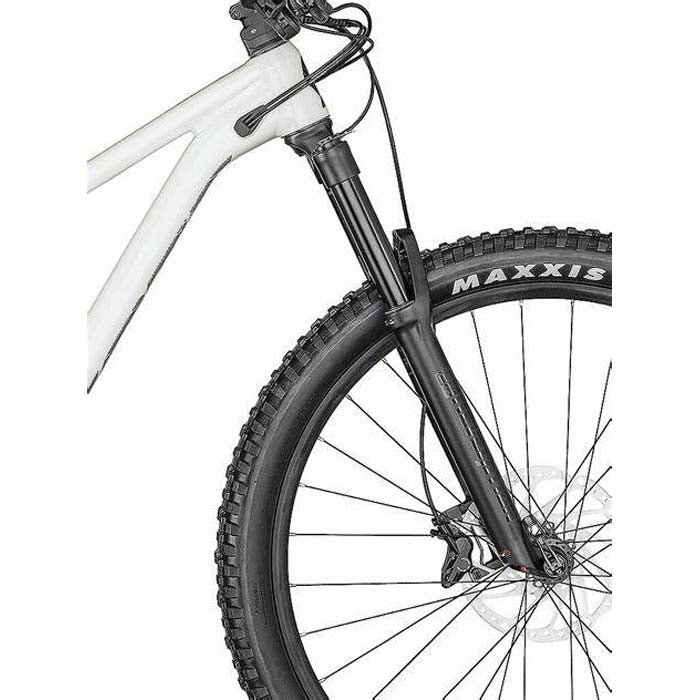

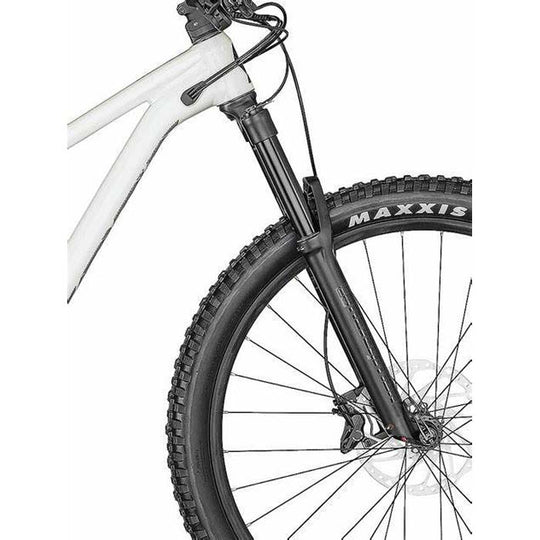

Fork:
RockShox Revelation RL3, Charger damper, 3-mode adjust via Scott TwinLoc TSP (Lockout, Trail, Descend), rebound adjust, 42mm offset
Head Tube Diameter:
Tapered, 1.125" top, 1.5" bottom
Headset:
Syncros Pro Press Fit E2

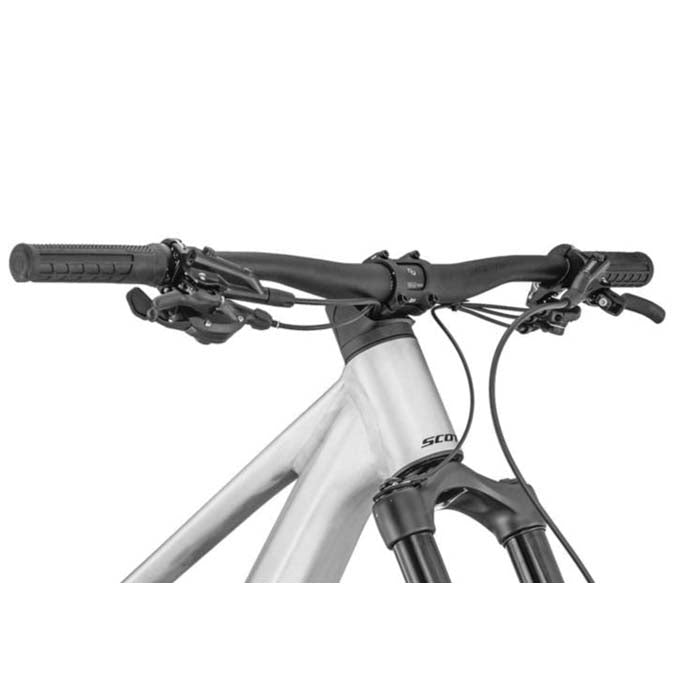

Handlebar:
Syncros Hixon 2.0, 6061 double-butted alloy, 780mm width, 12mm rise, 9° sweep, 31.8mm clamp diameter
Stem:
Syncros FL2.0, 6061 alloy, 6° rise, 31.8mm bar clamp
Length: 40mm (SM), 50mm length (MD/LG/XL)
Grips:
Syncros Pro, lock-on
Brakes:
Shimano MT520, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear)
Brake Levers:
Shimano MT520
Shifters:
Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS, I-SPEC EV bracket
Rear Derailleur:
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Chainguide:
Scott upper slider
Chainrings:
Shimano MT611, 32 tooth
Bottom Bracket:
Shimano MT500, 92mm press-fit
Chain:
Shimano Deore M6100, 12-speed
Cassette:
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims:
Syncros X-30S, sleeve joint, 30mm width, 32 hole, tubeless ready
Hubs:
Shimano MT410, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes:
Stainless steel, 15g/1.8mm
Tires
Front: Maxxis Dissector, EXO, TR, 60 TPI, foldable, 29" x 2.6"
Rear: Maxxis Rekon, EXO, TR, 60 TPI, foldable, 29" x 2.6"
Saddle:
Syncros Tofino 2.5 Regular
Seatpost:
Syncros Duncan 2.5 dropper, remote integrated with Scott TwinLoc lever
Drop: 100mm (SM), 125mm (MD), 150mm (LG/XL)
Seatpost Diameter:
31.6mm
Seatpost Clamp:
Single bolt
Rear Dropout / Hub Dimensions:
148x12mm Boost
Max. Tire Size:
29" x 2.6" or 27.5" x 2.8"
Bottle Cage Mounts:
One inside front triangle
