V4 Carbon

Product Description

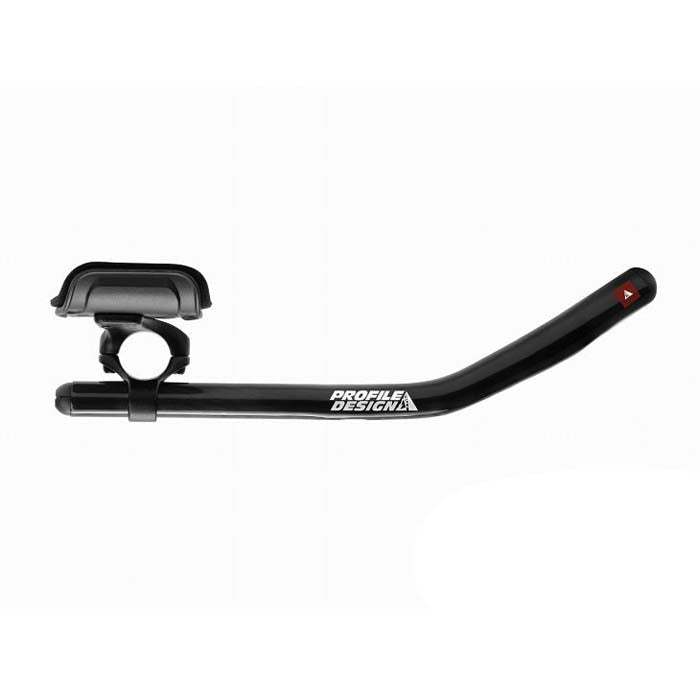

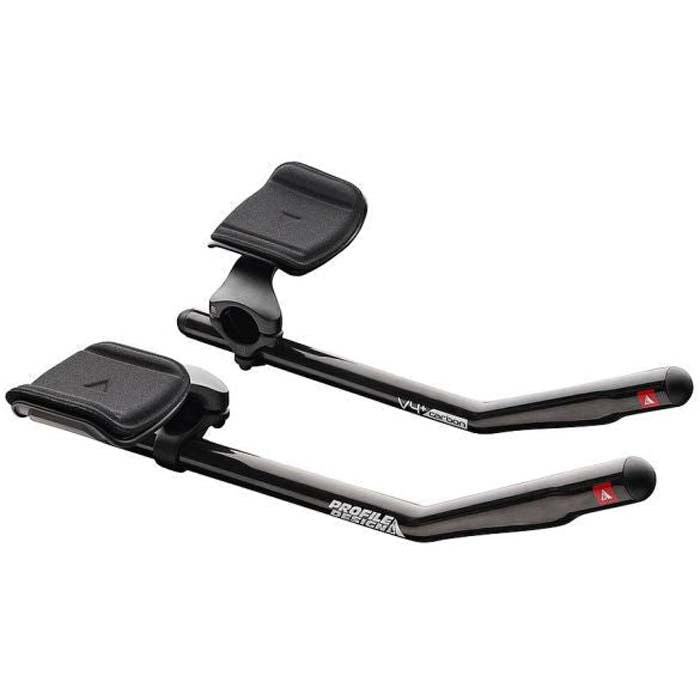

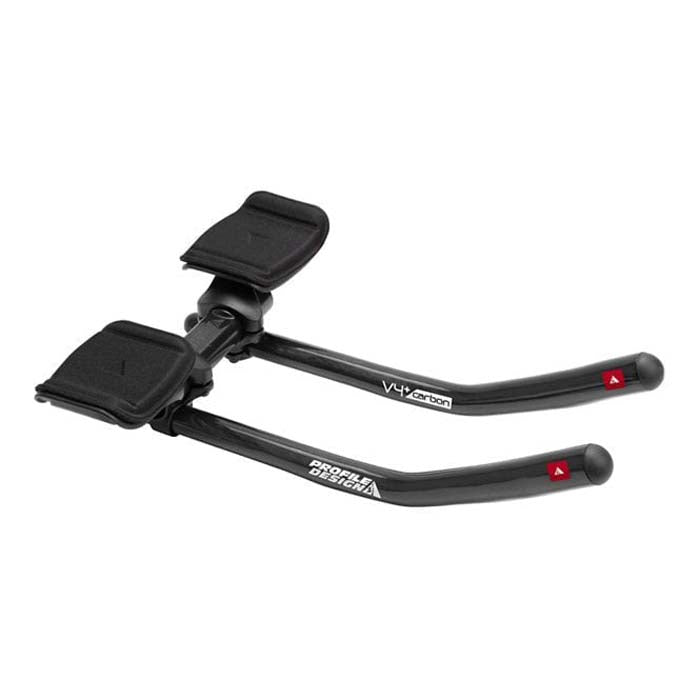

The V4+ Carbon introduces a new extension paired with the new L2 bracket. The V4+ extension is a variation of the T4+ extension bend featuring a higher rise Ski-bend to compensate for the lower mounting position of the extensions. The clamp design places the extension below the basebar with a stack height of 2.25cm below the T-series aerobars. Combining the L2 bracket and F40tt armrest offers small incremental adjustments producing our best ever reach and width range.

TECH SPECS
Bracket: L2 Bracke
Armrest: F40tt
Armrest Stack: 37.5mm
Armrest Reach: -31.85mm to -76.85mm (7.5mm Increments)
Armrest Width (C-C): 183.2mm to 294.2mm (100mm Ext. Width)
Extension Length Adjustment: 211mm to 343mm (center of basebar to tip)
Extension Length: 366mm
Extension Height: 84mm
Extension Angle: 30°
Clamp Diameter:  31.8mm (26.0 w/Shims)
Color: Black
Weight: 550g
₱10,800.00
